Shantui Spare Parts SD22 Main Relief Valve Ass’y 701-30-51002
Part Name: Main relief valve ass’y
Part Number: 701-30-51002
Machine Model: SD22

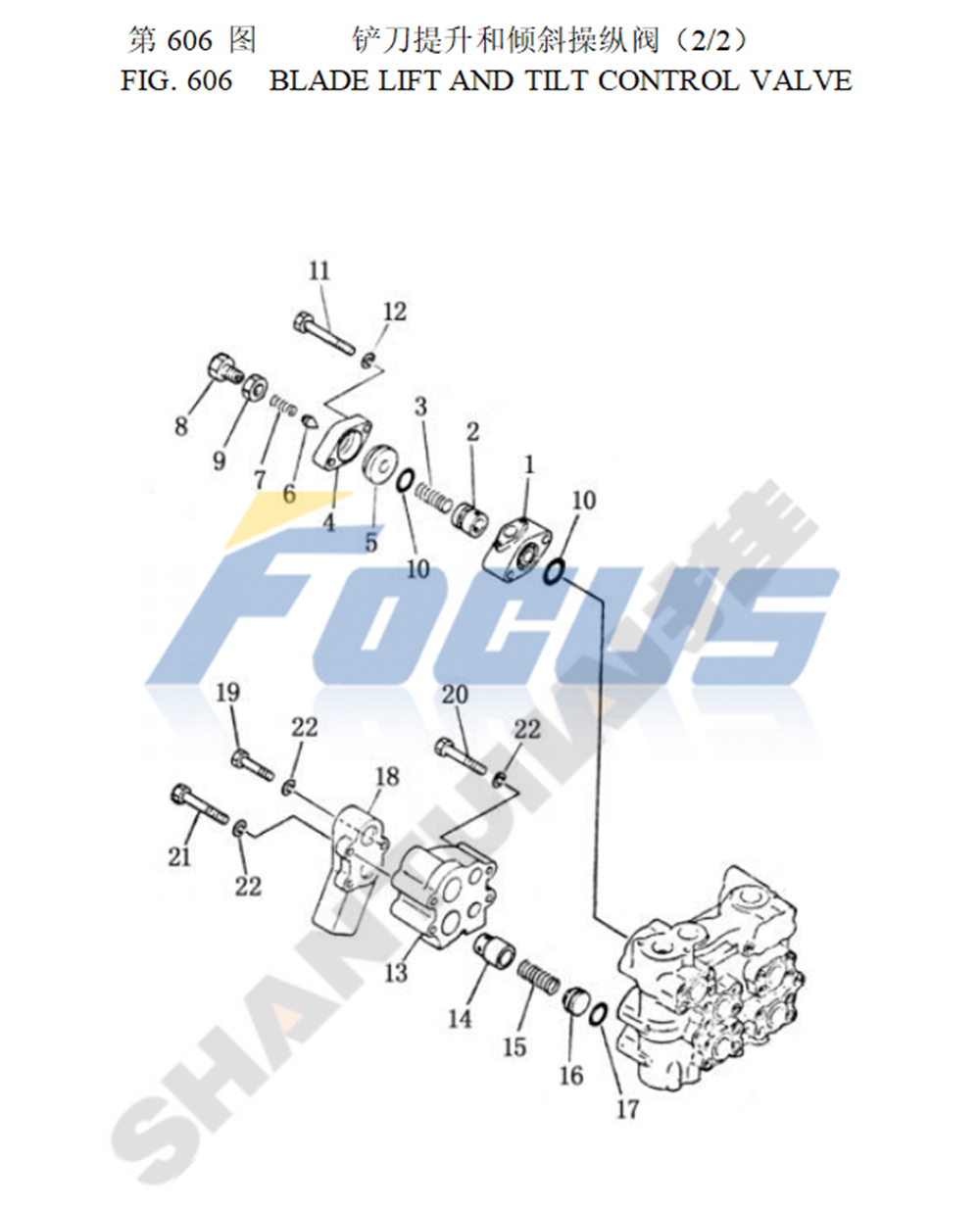

| Index No. | Part No. | Description | Q’ty |
| 701-34-11002 | blade lift and tilt control valve ass’y | 1 | |
| 701-30-51002 | main relief valve ass’y | 1 | |
| 606-1 | 701-30-51111 | housing, relief valve | 1 |
| 2 | 701-30-51120 | valve, relief | 1 |
| 3 | 701-30-51130 | spring | 1 |
| 4 | 701-30-51140 | body | 1 |
| 5 | 701-30-51151 | seat, valve | 1 |
| 6 | 701-30-51160 | poppet | 1 |
| 7 | 701-30-51171 | spring | 1 |
| 8 | 701-10-51160 | plug | 1 |
| 9 | 701-30-51190 | nut | 1 |
| 10 | 07000-13048 | o-ring | 2 |
| 11 | 01011-51405 | bolt | 2 |
| 12 | 01602-21442 | washer, spring | 2 |
| 701-40-61002 | suction valve ass’y | 1 | |
| 13 | 701-40-61152 | body, suction valve | 1 |
| 14 | 701-40-61120 | valve | 2 |
| 15 | 701-50-61131 | spring | 2 |
| 16 | 701-40-72120 | body | 2 |
| 17 | 07000-13040 | o-ring | 2 |
| 18 | 701-40-67110 | baffle | 1 |
| 19 | 01010-51480 | bolt | 1 |
| 20 | 01010-51495 | bolt | 2 |
| 21 | 01011-51435 | bolt | 2 |
| 22 | 01602-21442 | washer, spring | 5 |
