Shantui SD32 Track Tension Oil Cylinder 175-30-24222
Part Name: Track Tension Oil Cylinder
Part Number: 175-30-24222
Machine Model: SD32
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com

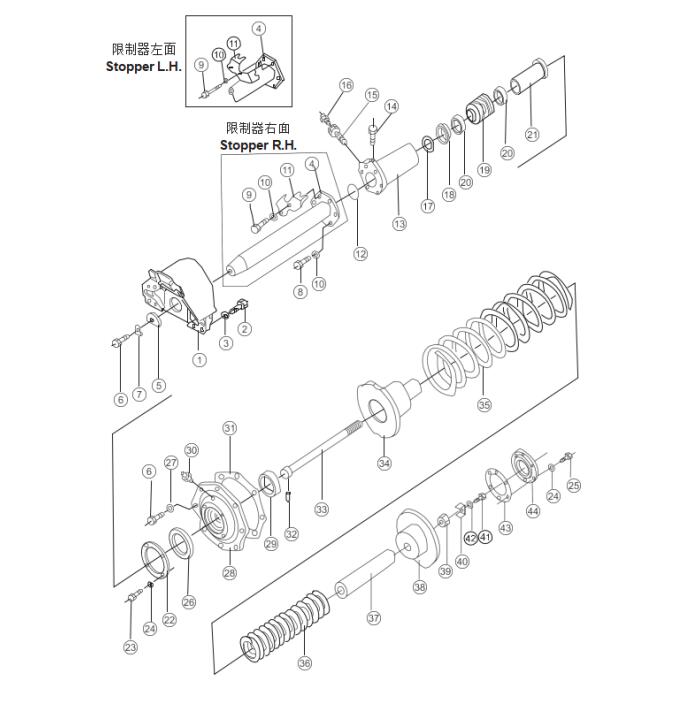

| 序号 |
部件号 |
零件名称 |
|
数量 |
适用机型 |
|
| NO. |
PART NO. |
PART NAME |
|
Q'TY |
MODEL |
|
| 1 |
176-30-44110 |
座罩 |
Seat cover |
2 |
|
|
| 2 |
01010-52095 |
螺栓 M20*95 |
Bolt M20*95 |
16 |
|
|
| 3 |
01602-22060 |
弹簧垫圈 20 |
Spring washer 20 |
16 |
|
|
| 4 |
175-30-34210 |
轴 |
Shaft |
2 |
|
|
| 5 |
195-30-14151 |
垫圈 |
Washer |
2 |
|
|
| 6 |
01010-52460 |
螺栓 M24*60 |
Bolt M24*60 |
18 |
|
|
| 7 |
195-30-14160 |
止动垫 |
Spacer |
2 |
|
|
| 8 |
01010-51650 |
螺栓 M16*50 |
Bolt M16*50 |
8 |
|
|
| 9 |
01010-51655 |
螺栓 M16*55 |
Bolt M16*55 |
4 |
|
|
| 10 |
01602-21648 |
垫圈 16 |
Washer 16 |
12 |
|
|
| 11 |
175-30-34161 |
罩 |
Cover |
2 |
|
|
| 12 |
07000-15090 |
O 形圈 |
O-ring |
2 |
|
|
| 13 |
175-30-24222 |
油缸 |
Oil cylinder |
2 |
|
|
| 14 |
198-30-14420 |
油塞 |
Oil plug |
2 |
|
|
| 15 |
195-30-13191 |
注油器 |
Grease fitting |
2 |
|
|
| 16 |
07020-01021 |
油杯 M10*1 |
Oil cup M10*1 |
2 |
|
|
| 17 |
04064-07525 |
挡圈 |
Retainer ring |
2 |
|
|
| 18 |
175-30-24242 |
密封环 |
Sealing ring |
2 |
|
|
| 19 |
170-30-14211 |
活塞 |
Piston |
2 |
|
|
| 20 |
170-30-14230 |
环 |
Ring |
4 |
|
|
| 21 |
175-30-24361 |
销子 |
Pin |
2 |
|
|
| 22 |
175-30-24270 |
垫 |
Pad |
2 |
|
|
| 23 |
01010-51225 |
螺栓 M12*25 |
Bolt M12*25 |
8 |
|
|
| 24 |
01602-21236 |
垫圈 12 |
Washer 12 |
20 |
|
|
| 25 |
01010-51235 |
螺栓 M12*35 |
Bolt M12*35 |
12 |
|
|
| 26 |
07019-00130 |
防尘油封 |
Seal, Dust |
2 |
|
|
| 27 |
01602-22472 |
垫圈 24 |
Washer 24 |
16 |
|
|
| 28 |
175-30-34252 |
盖 |
Cover |
2 |
|
|
| 29 |
170-30-14221 |
衬套 |
Bushing |
2 |
|
|
| 30 |
07021-01060 |
油杯 60 M10*1 |
Oil cup 60 M10*1 |
2 |
|
|
| 31 |
175-30-34260 |
垫圈 |
Washer |
2 |
|
|
| 32 |
04020-01024 |
圆柱销 |
Cylindrical pin |
2 |
|
|
| 33 |
175-30-34312 |
螺栓 |
Bolt |
2 |
|
|
| 34 |
175-30-34140 |
导向座 |
Seat, Guide |
2 |
|
|
| 35 |
175-30-34180 |
弹簧 |
Spring |
2 |
|
|
| 36 |
175-30-34190 |
弹簧 |
Spring |
2 |
|
|
| 37 |
175-30-34320 |
套筒 |
Sleeve |
2 |
|
|
| 38 |
175-30-34150 |
导向座 |
Seat, Guide |
2 |
|
|
| 39 |
170-30-14351 |
螺母 |
Nut |
2 |
|
|
| 40 |
170-30-34290 |
止动垫 |
Spacer |
2 |
|
|
| 41 |
01010-51020 |
螺栓 M10*20 |
Bolt M10*20 |
2 |
|
|
| 42 |
01602-21030 |
垫圈 10 |
Washer 10 |
2 |
|
|
| 43 |
170-30-14341 |
垫片 |
Shim |
2 |
|
|
| 44 |
175-30-34331 |
盖 |
Cover |
2 |
|
|
|
|
|
|
|
|
|
